Professional drilling rig supplier
3000m full hydraulic core drilling rig for deep mineral exploration
    Publish time 2025-10-20 16:15

XDX-8 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring for wire-line coring drilling.

Ⅰ、A General Introduction

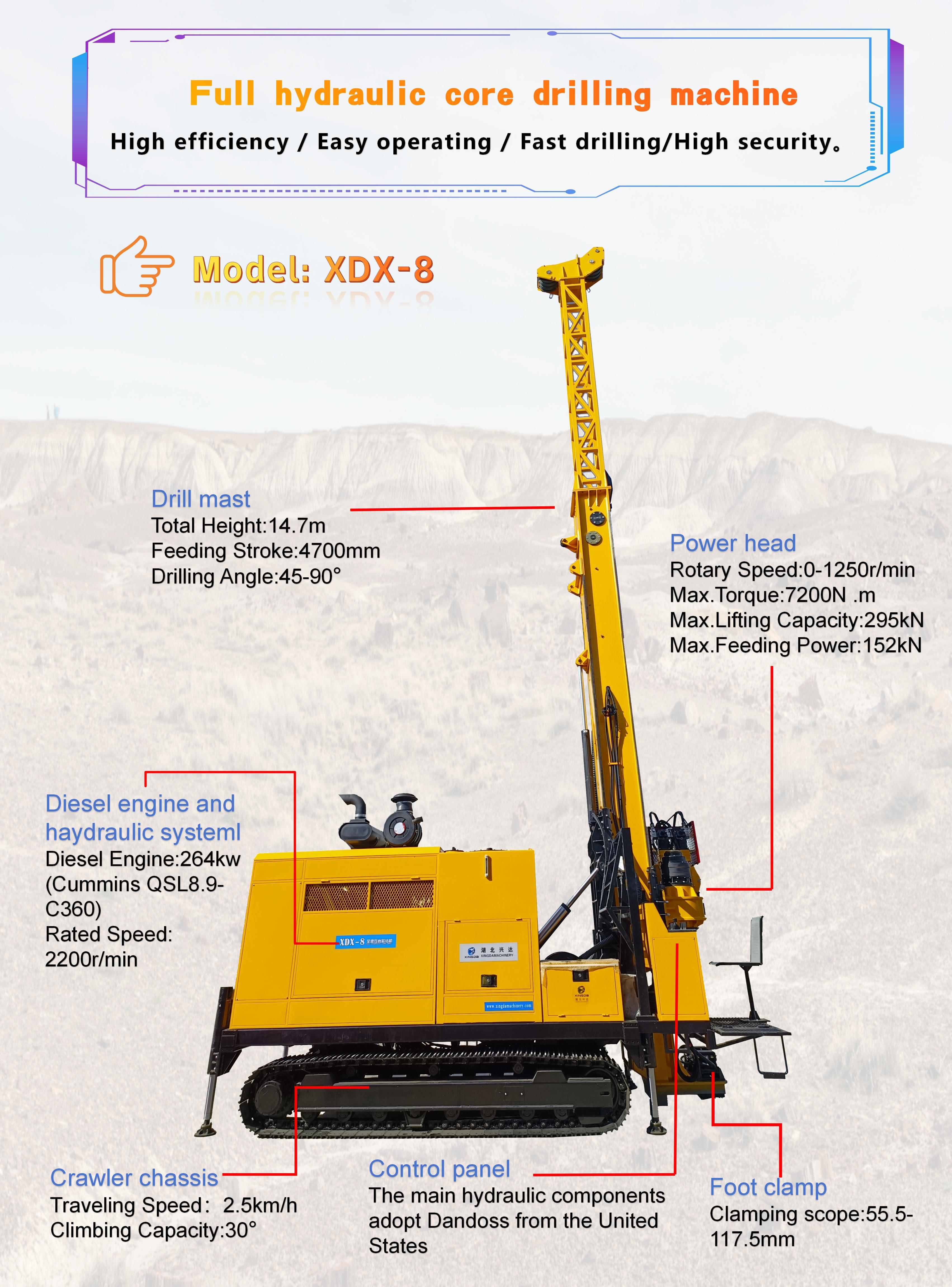

XDX-8 Hydraulic Core Drilling Rig ,is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world.XDX-8 is reasonable in design,compact in structure, excellent in performance, easy for operation and convenient for maintenance, thus, it is an ideal core drilling machine.

Ⅱ、Application Range

XDX-8 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring for wire-line coring and top drive drilling.

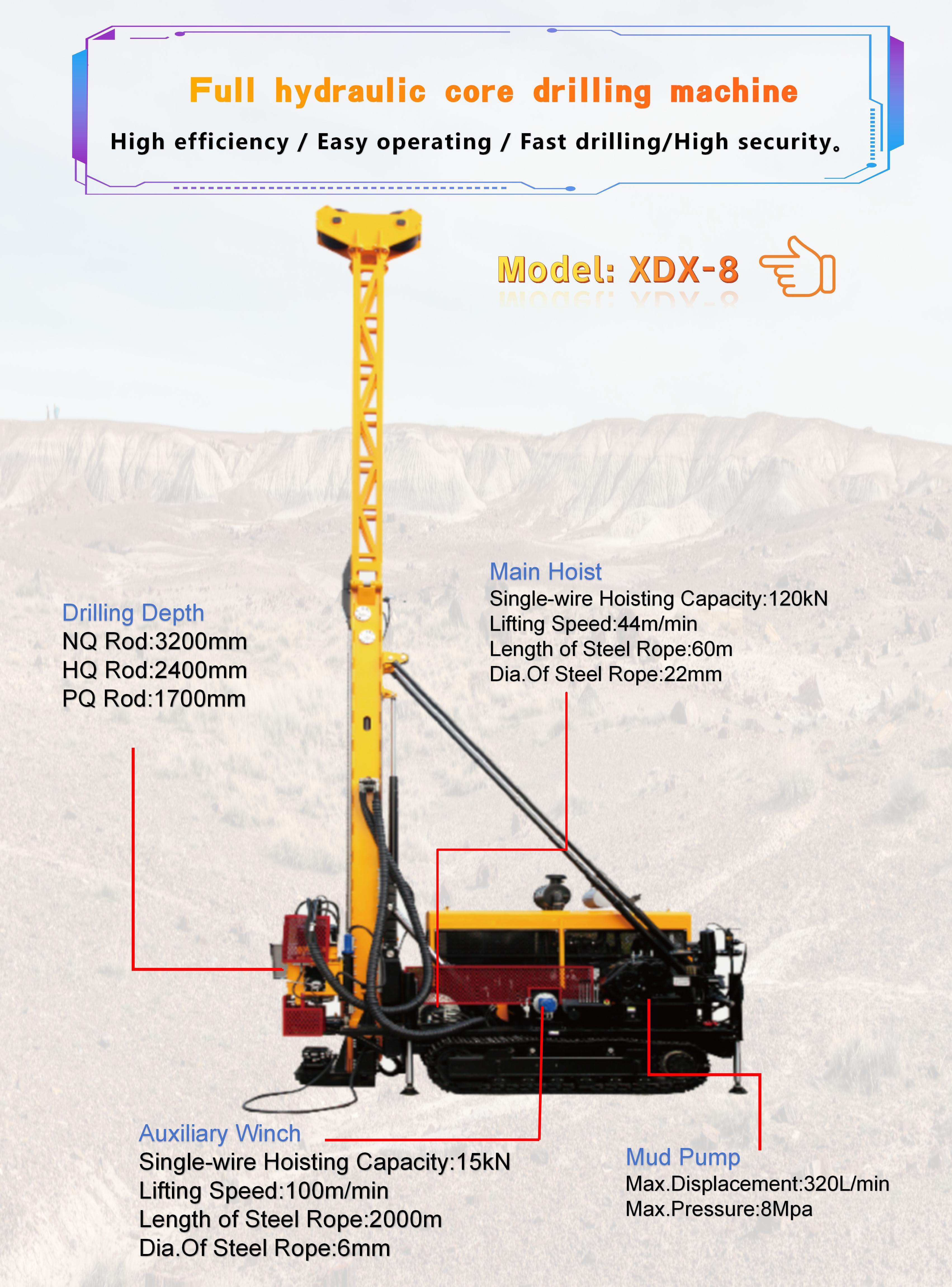

Model
Unit		XDX-8
Item

Drilling Depth		 NQ Rod(φ69.9mm)m3000
  HQ Rod(φ88.9mm)2400
  PQ Rod(φ114.3mm)1700

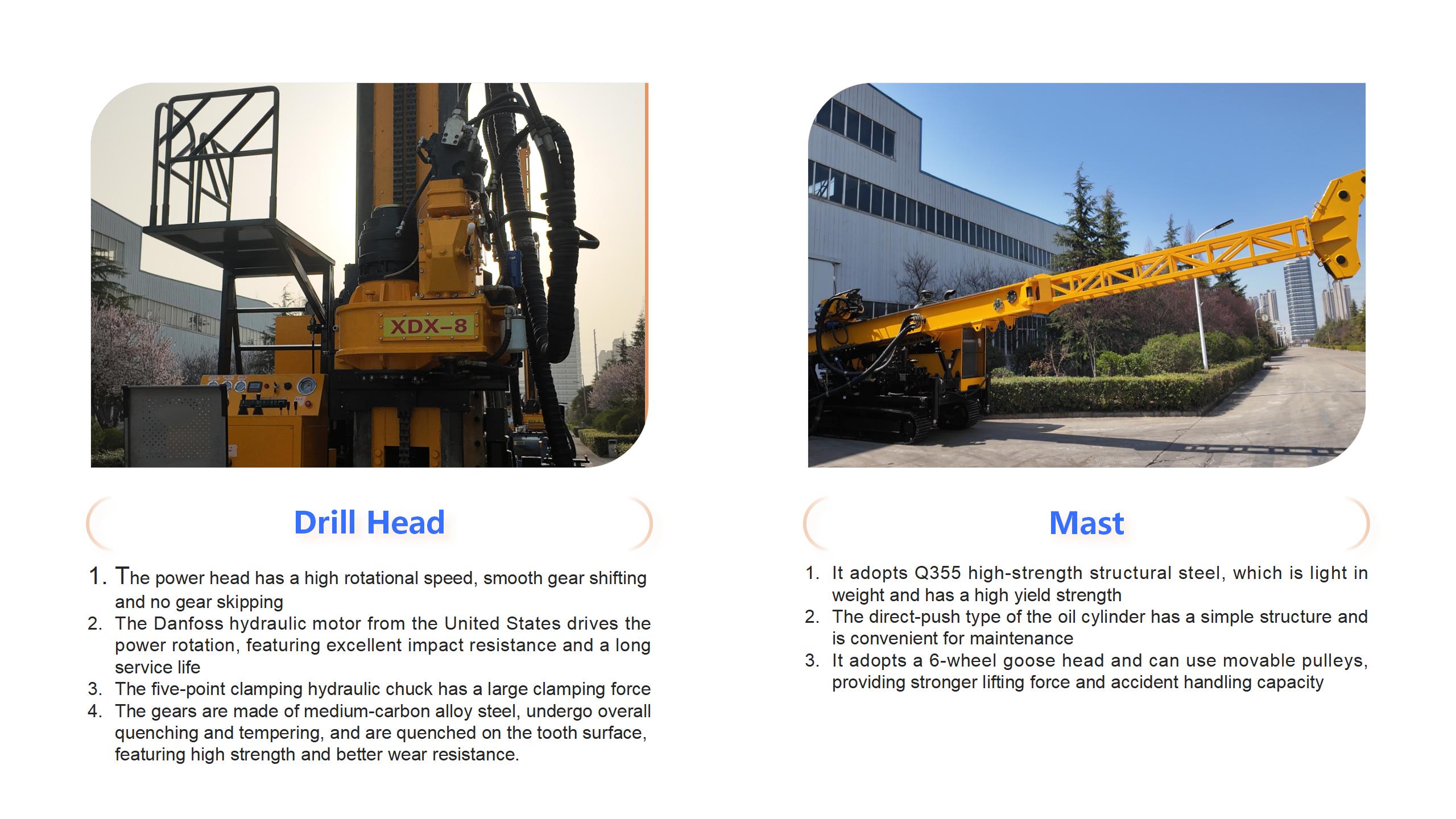

Drill Head Capacity
Speed Range		Grade Ir/min254-508
Grade II448-897
Grade Ⅲ526-1100

Corresponding
Torque		Grade IN.m8000-3611
Grade II4091-2046
Grade Ⅲ3486-1743
Max.Rotary Speedr/min1100
Max.TorqueN ·m8000
Hole Diameter of Spindlemm121
Max.Lifting CapacitykN295
Max.Feeding PowerkN152
Translational Distancemm695

Diesel Engine		Rated PowerkW264(Cummins QSL8.9-C360)
Rated Speedr/min2100

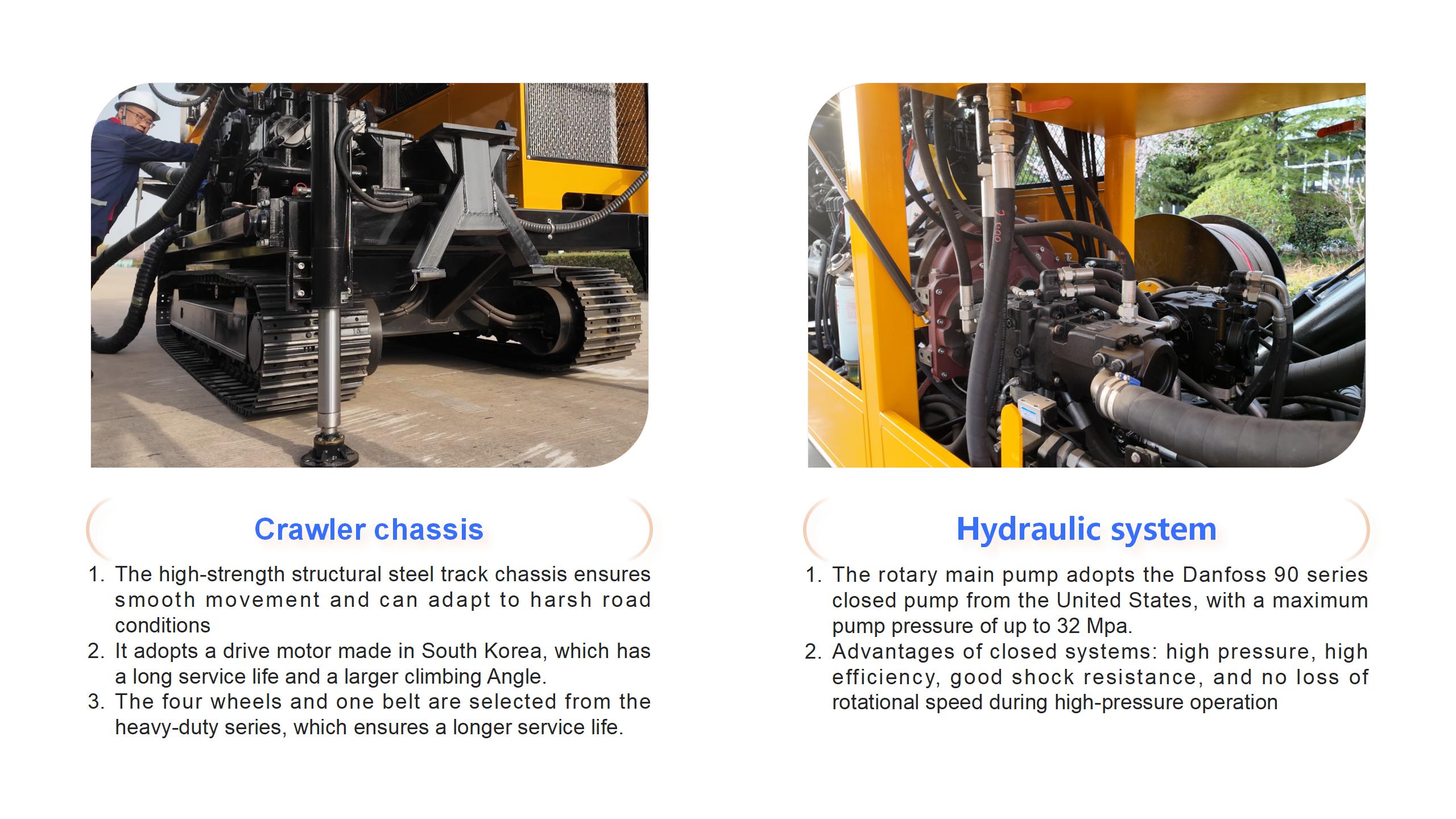

Hydraulic
Pump
Pump 1		Rated PressureMPa25
Max.FlowL/min260

Pump2		Rated PressureMPa32
Max.FlowL/min150

Pump3		Rated PressureMPa32
Max.FlowL/min150

Pump 4		Rated PressureMPa25
Max.FlowL/min120

Side Pump1		Rated PressureMPa20
 Max.FlowL/min25

Side Pump2		  Rated PressureMPa5
  Max FlowL/min8

Mast		  Total Heightm14.7
  Adjusting Angle°0～90
  Drilling Angle°45～90
  Feeding Strokemm4700
  Sliding Distance of Mastmm1100

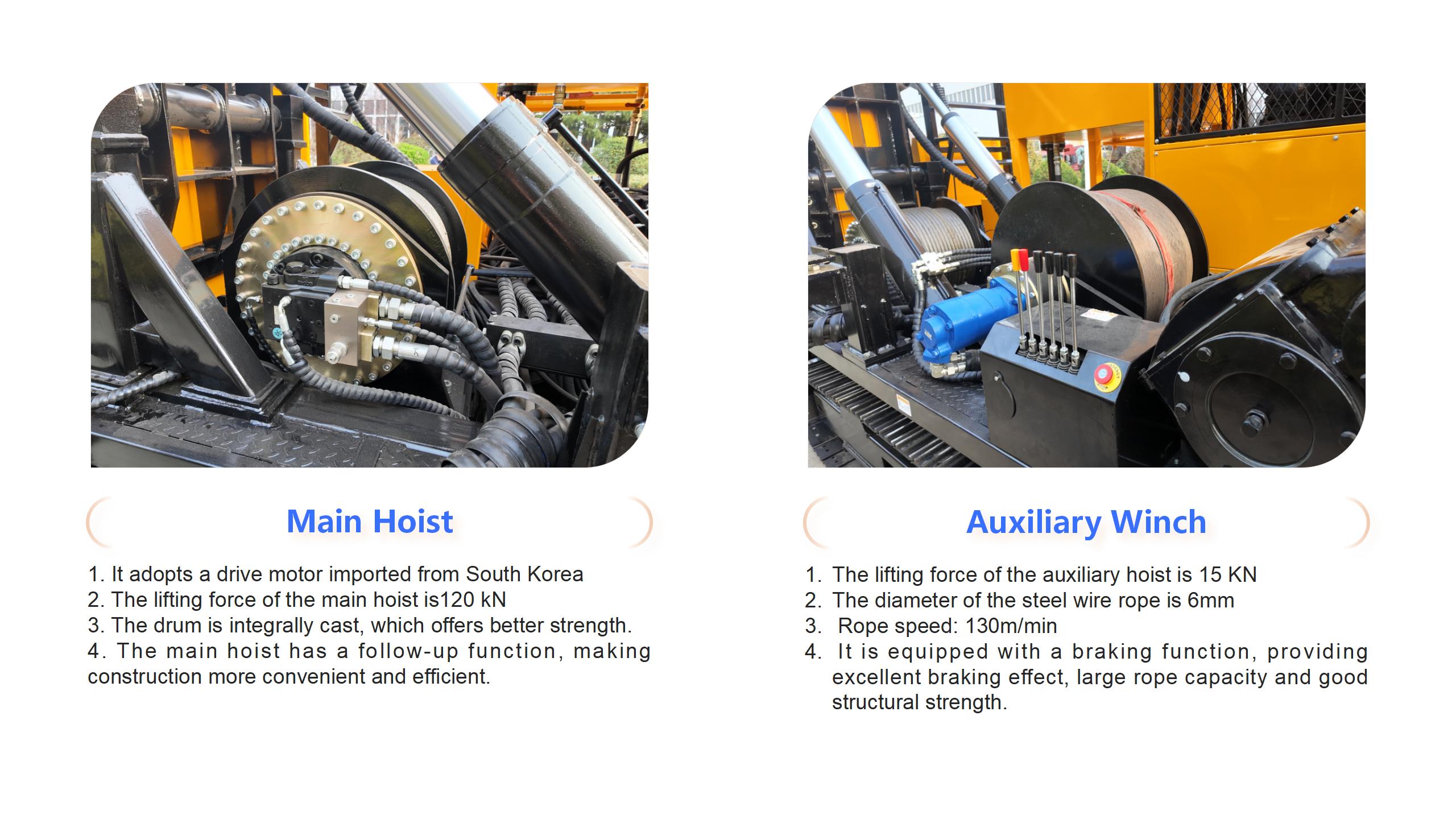

Main Hoist		  Single-wire Hoisting CapacitykN120
  Lifting Speedm/min44
  Dia.Of Steel Ropemm22
  Length of Steel Ropem60

Auxiliary Winch		  Single-wire Hoisting CapacitykN15
  Lifting Speedm/min130
  Dia.Of Steel Ropemm8.0
  Length of Steel Ropem2500

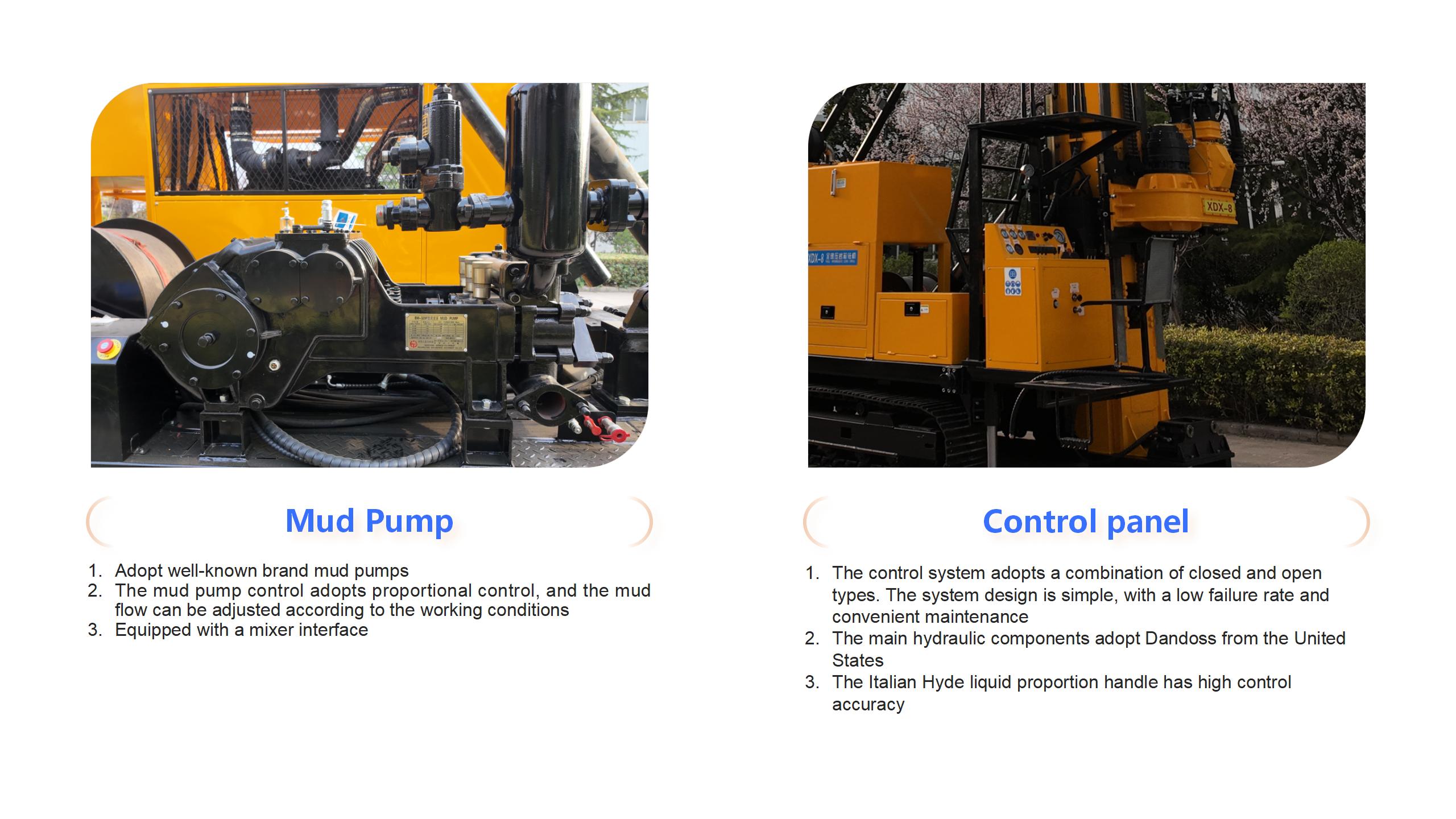

Mud Pump		  Model/BW320
  Max.DisplacementL/min320
  Max.PressureMPa10
Overall Dimensions(L×W×H)  Working Dimensionsmm6020×2475×14745
Transport Dimensionsmm8165×2530×3030

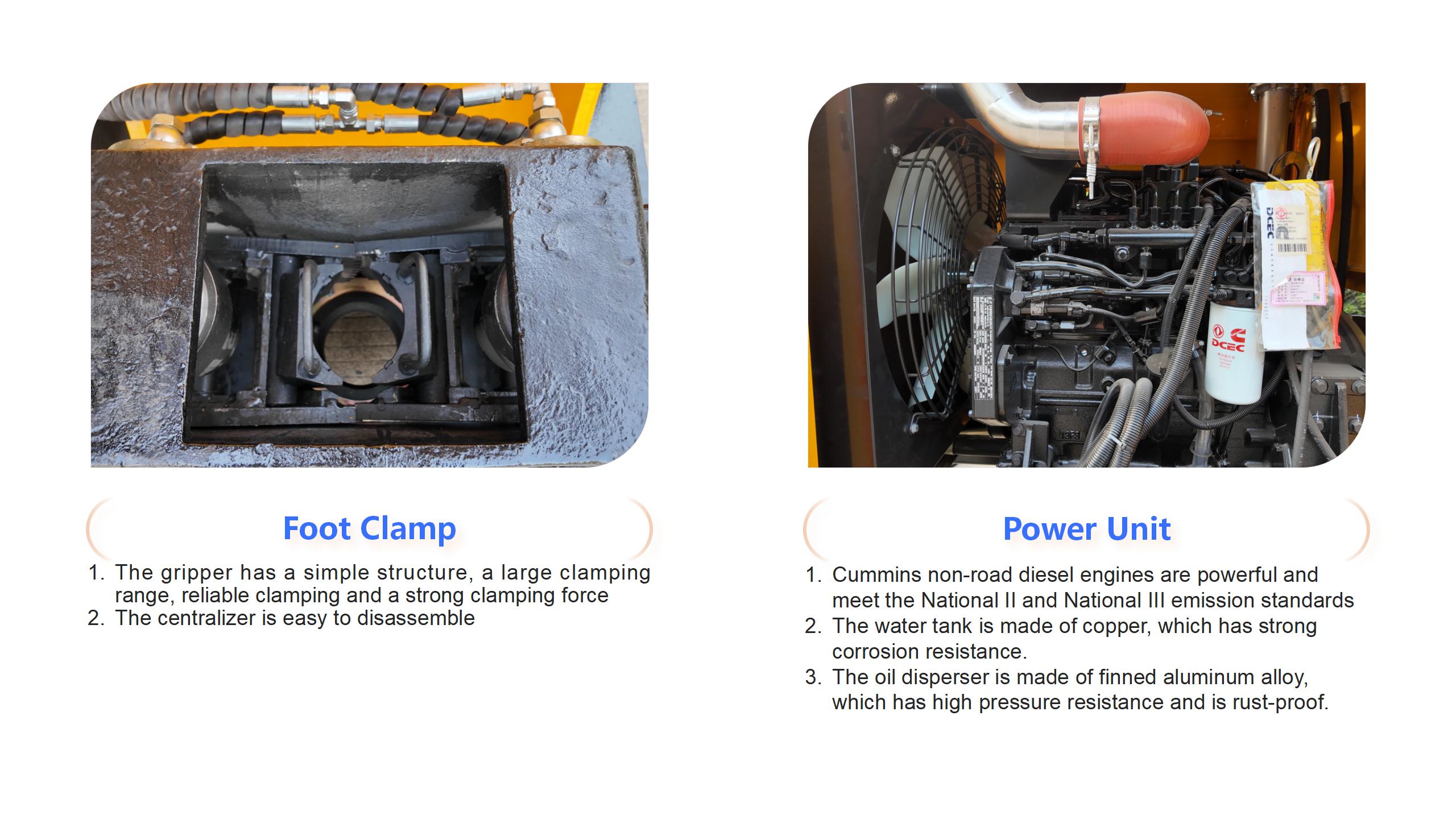

Orifice Clamp		Applicable RodsmmBQ,NQ,HQ,PQ
Via DiametermmΦ154
 Traveling Speedkm/h1.5-2.5
 Climbing Capacity°≤30
 Earth Contact Pressure RatioMPa0.14
 Weight of Main Machinet25
