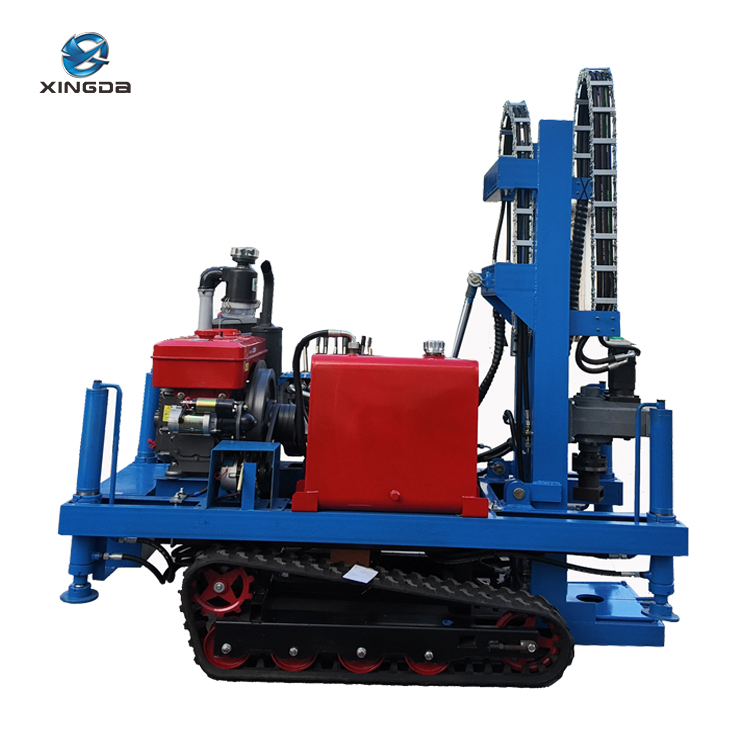

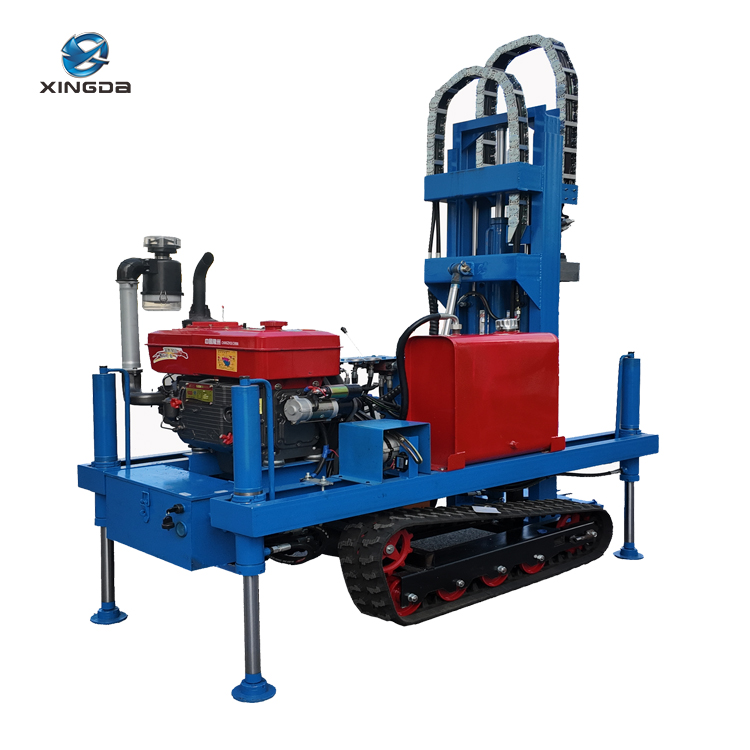

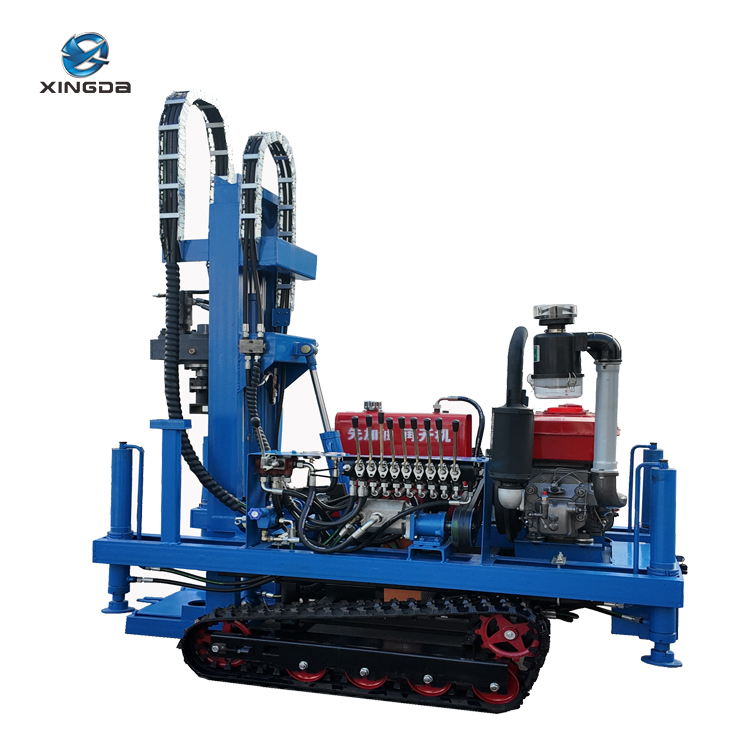

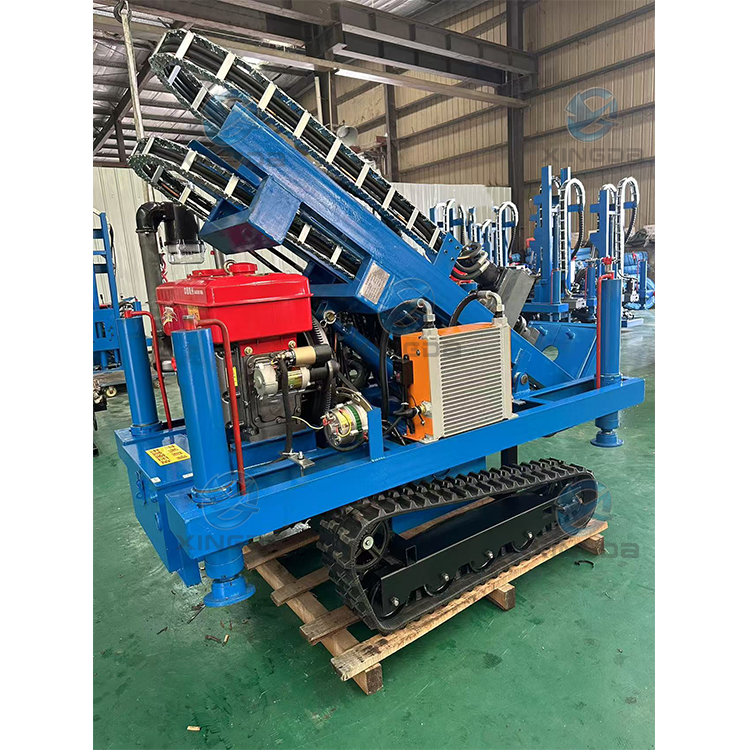

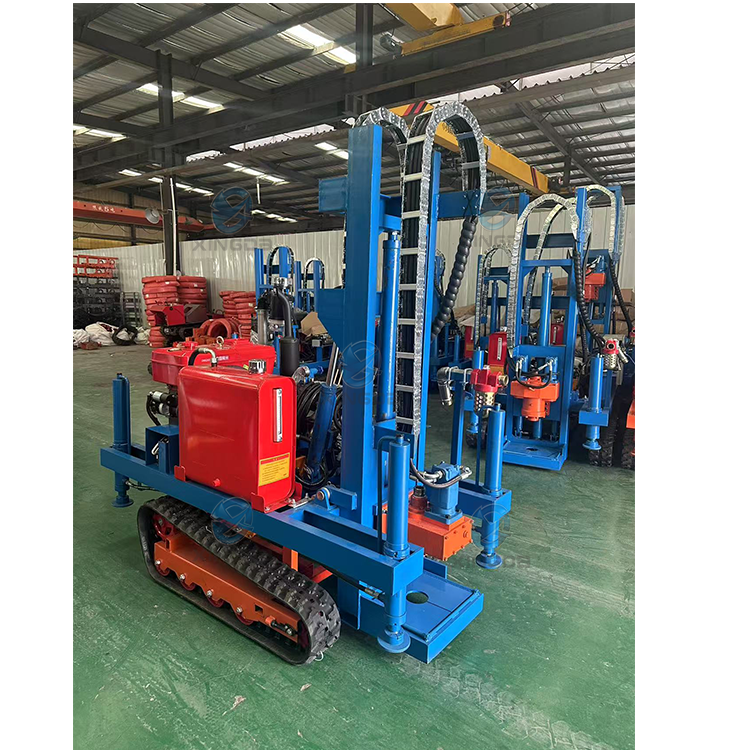

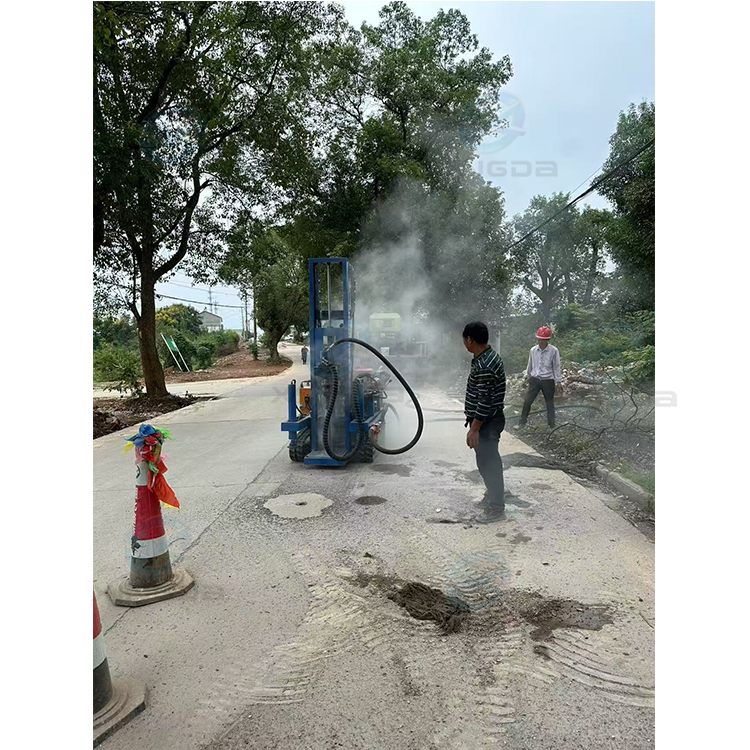

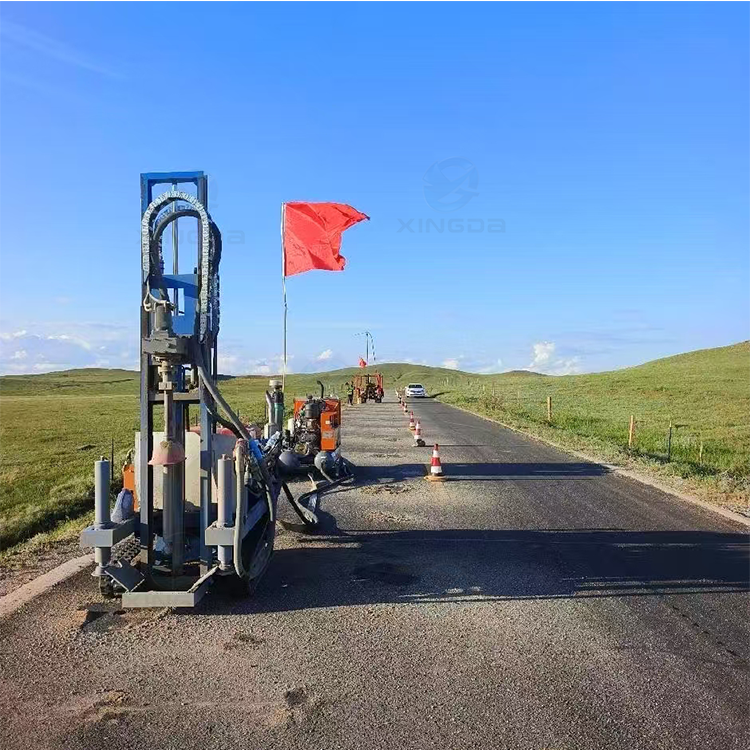

XDH180 hydraulic DTH drilling rig is widely applied to road, national defence, water conservancy, open-pit mine small blast-hole drilling, slope protection projects etc. It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally. With compact structure, easy operating, fast drilling, high efficiency,easy to disassemble and carrying.
1.Product Description
XDH180 hydraulic DTH drilling rig is widely applied to road, national defence, water conservancy, open-pit mine small blast-hole drilling, slope protection projects etc. It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally. With compact structure, easy operating, fast drilling, high efficiency,easy to disassemble and carrying.

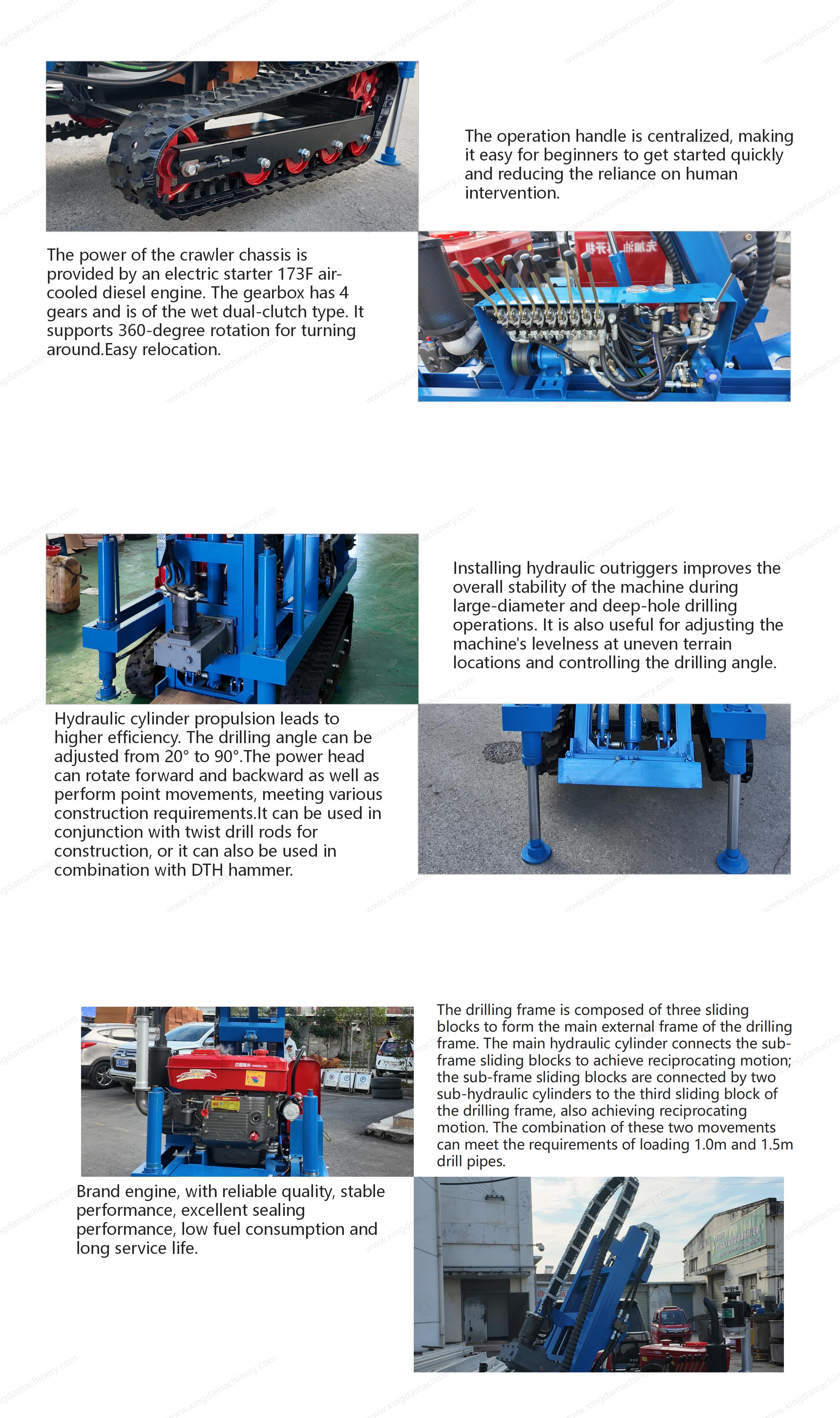

2. Features:
1. Tracked movement makes it easier to move. 2. The rig has large torque 2500KN. 3. The speed of loading and unloading the drill pipe is controllable and the safety is high. 4. Adopt 14Mpa hydraulic system, stable and reliable output. 5. Nylon sliders are used for easy replacement.
Main Features
Model
XDH180
Air consumption
6-12m³/min
Hole diameter
60-150mm
DTH hammer
90/110mm hammer
Depth
10-50m
Drill rod
60mm*1000mm
Max torque
2500N.m
Stroke of power head
1850mm
Max lifting force
25KN
Max feeding force
25KN
Hydraulic system pressure
14Mpa
Motor power
22HP diesel engine
Total weight
1000kg
Rotary speed
0-80rpm
