Description
Type: Core Drilling Rig
Power Type: Diesel
Place of Origin: Hubei, China
Brand Name: Xingda
Use: Geological exploration and coring
Voltage: 220V, 380V, 24V
Dimension(L*W*H): 8300*2400*3260mm
Weight: 25000 KG, 25000 Kg
Warranty: 1 Year
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Pump, Engine
Key Selling Points: full hydraulic
Drilling Diameter: BQ, NQ, HQ, PQ
Drilling Depth: 3000m
Mobility: Crawler walking
Product name: Hydraulic Geotechnical Drilling Machine
Drilling capacity: 1000-3000m
Wireline coring NQ size: 3000m
Drilling angle: 45°~90°
Feeding stroke: 4700mm
Lifting speed: 44m/min(bare drum)
Power: Cummins 264kw
Torque: 7200Nm
MOQ: 1set
If you want to know more ,pls send us inquiry and we will give you best ideas
Product Description

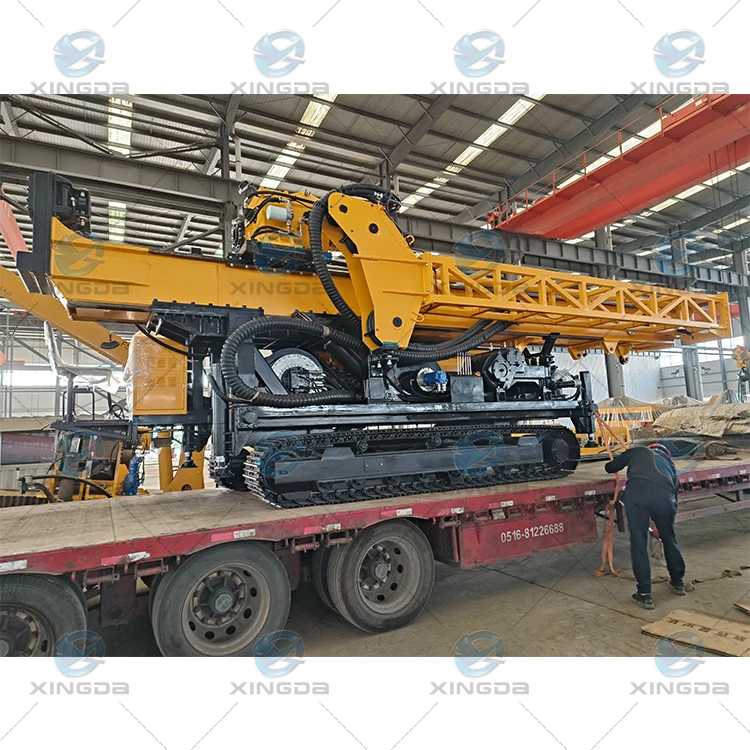

Hight Quality Durable Crawler Mounted Geological Exploration Hydraulic Drilling Rig For 3000m Core Sample

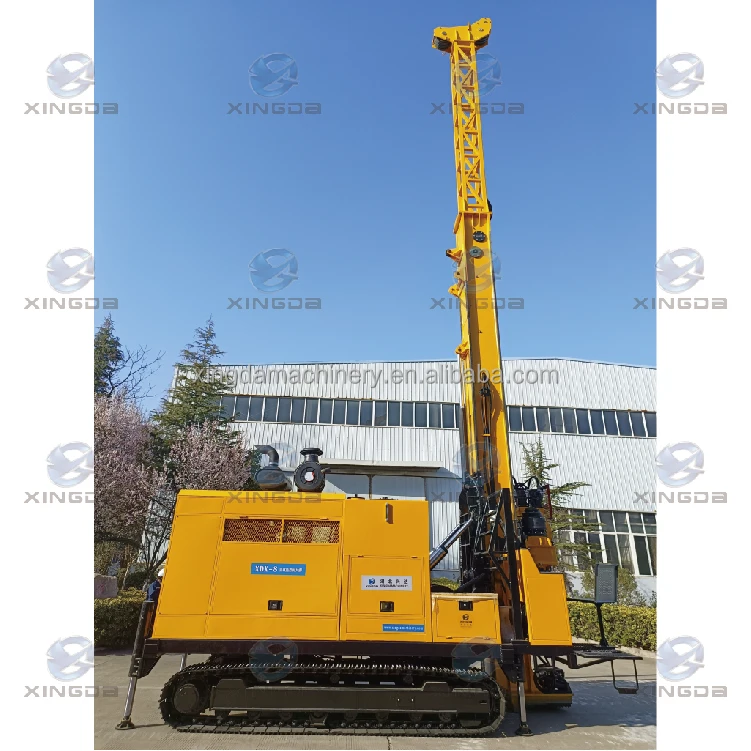

General Introduction
XDX-8 Hydraulic Core Drilling Rig ,is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world.XDX-8 is reasonable in design, compact in structure, excellent in performance, easy for operation and convenient for maintenance, thus, it is an ideal core drilling machine.
Item | Parameters | Unit | Remark | |
Power | Model | QSL8.9-C360-30 | Cummins | |
Power | 276 | KW | ||
Rotation speed | 2100 | rpm/min | ||
Drilling capacity | BQ(55.5) | 3600 | m | |
NQ(69.9) | 3000 | m | ||
HQ(88.9) | 2400 | m | ||
PQ(114.3) | 1700 | m | ||
Drill head | Rotation speed | 0~1250 | r/min | |
Max. Rotating torque | 7200(170rpm) 1300(1250rpm) | N.m | ||
Spindle dia | 121 | mm | ||
Max lifting force | 295 | KN | ||
Max feeding force | 152 | KN | ||
Feeding stroke | 4700 | mm | ||
Lifing speed | 44 | m/min | ||
Main Hoister | Lift force（single rope） | 120 | KN | |
Dia of steel rope | 21.5 | mm | ||
Depth of steel rope | 50 | m | ||
Lifting speed | 44 | m/min | ||
Wire line winch | Lift force（single rope） | 15 | KN | |
Dia of steel rope | 6.3 | mm | ||
Depth of steel rope | 2800 | mm | ||
Lifting speed | 100 | m/min | ||
Mast | Hoisting length | 9.6 | m | |
Adjusting angle | 0~90° | |||
Drilling angle | 45~90° | |||
Slippage stroke | 1100 | mm | ||
Others | Total weight | 25000 | KG | |
Transport Dimensions | 8300*2400*3260 | mm | ||
Mud pump | BW320 | 320L/min,8Mpa | ||
Foot clamp | 55.5~117.5 | mm | (Via hole 154mm) |

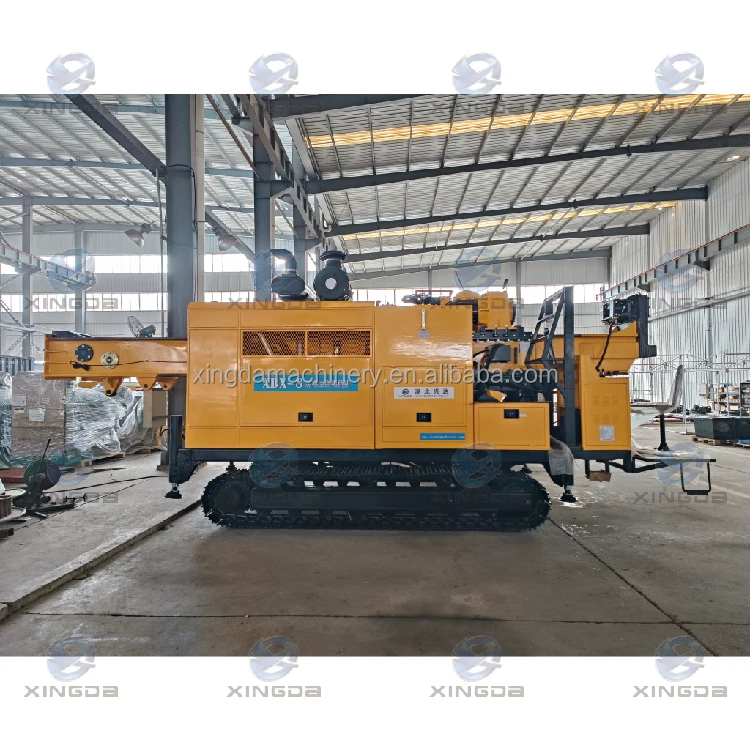

Main Features of the rig:
The rig, equipped with steel tracks, has a full hydraulic driving system. It owns a brief but advanced structure, with its power head driven by a variable pump and motor, it owns hydraulic stepless speed-changeable system, and its mechanical speed is adjustable for 2 gears. The oil cylinder is working with a feed-in multiple-speed chain, thus, its feed-in and lifting
performances are stable and reliable. The mast is lifted and lowered with oil cylinder, it is foldable and has moving and
ground-supporting functions. It is adjustable in the range from 0°to 90° to ensure a proper hole-drilling angle. The low gravity center of the rig promises a steady operation. And the control panel provides the operators with a convenient and comfortable working circumstance and a wide view. In short, the rig is easy to be repaired and has a beautiful outline, which show a friendly man-machine interface.
1)Reliable Quality
The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories, are all products with well-known brands.
2) High Efficiency
Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long (19.7 feet)
drilling rod guarantee the high operation efficiency of the rig.
3)Environmental Protection
The diesel engine is professionally designed to reduce noise and other contamination (The noise can not be over 72db), which makes the rig proper to be operated in urban areas.
4)Energy Saving
The advanced technique of loading-sensor-controlling helps the rig reduce its consumption of driving force and heat discharge to the minimum extent.
The rig, equipped with steel tracks, has a full hydraulic driving system. It owns a brief but advanced structure, with its power head driven by a variable pump and motor, it owns hydraulic stepless speed-changeable system, and its mechanical speed is adjustable for 2 gears. The oil cylinder is working with a feed-in multiple-speed chain, thus, its feed-in and lifting
performances are stable and reliable. The mast is lifted and lowered with oil cylinder, it is foldable and has moving and
ground-supporting functions. It is adjustable in the range from 0°to 90° to ensure a proper hole-drilling angle. The low gravity center of the rig promises a steady operation. And the control panel provides the operators with a convenient and comfortable working circumstance and a wide view. In short, the rig is easy to be repaired and has a beautiful outline, which show a friendly man-machine interface.
1)Reliable Quality
The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories, are all products with well-known brands.
2) High Efficiency
Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long (19.7 feet)
drilling rod guarantee the high operation efficiency of the rig.
3)Environmental Protection
The diesel engine is professionally designed to reduce noise and other contamination (The noise can not be over 72db), which makes the rig proper to be operated in urban areas.
4)Energy Saving
The advanced technique of loading-sensor-controlling helps the rig reduce its consumption of driving force and heat discharge to the minimum extent.
Main parts for drilling rig
1) The rotary motor, hydraulic pump and main control value of XDX series hydraulic core drilling rigs are all from Danfoss, low failure rate and easy maintenance. Provide guarantee for efficient drilling of XDX core drilling rigs.
1) The rotary motor, hydraulic pump and main control value of XDX series hydraulic core drilling rigs are all from Danfoss, low failure rate and easy maintenance. Provide guarantee for efficient drilling of XDX core drilling rigs.
2) All XDX series hydraulic core drilling rigs are equipped with Cummins 6-cylinder turbocharged engine, which is powerful, with low failure rate, low fuel consumption and high economy.
3) The XDX series hydraulic core drilling rigs use customized versions of reinforced mine-specific steel crawlers, it has strong carrying capacity and strong passability.
4) The crawler drive motor of XDX series hydraulic core drilling rigs adopts the Korean imported brand JIHYD, good durability, low failure rate, easy maintenance.
5) XDX series hydraulic core drilling rigs are equipped with two hoists, the main hoist and the steel wire hoist. The motor of the main hoist comes from Doosan ,South Korea. The motor of the steel wire hoist comes from Eaton.
6) The integrated console is easy to operate, which greatly reduces the labor intensity of the drillers. Throngh various display gauge on the console, the status of the drilling rig and the situation in the hole can be observed in real time.
7) ALL XDX series are equipped with standard hydraulic mud pump, which is easy to maintain, low maintenance cost and low failure rate.
3) The XDX series hydraulic core drilling rigs use customized versions of reinforced mine-specific steel crawlers, it has strong carrying capacity and strong passability.
4) The crawler drive motor of XDX series hydraulic core drilling rigs adopts the Korean imported brand JIHYD, good durability, low failure rate, easy maintenance.
5) XDX series hydraulic core drilling rigs are equipped with two hoists, the main hoist and the steel wire hoist. The motor of the main hoist comes from Doosan ,South Korea. The motor of the steel wire hoist comes from Eaton.
6) The integrated console is easy to operate, which greatly reduces the labor intensity of the drillers. Throngh various display gauge on the console, the status of the drilling rig and the situation in the hole can be observed in real time.
7) ALL XDX series are equipped with standard hydraulic mud pump, which is easy to maintain, low maintenance cost and low failure rate.

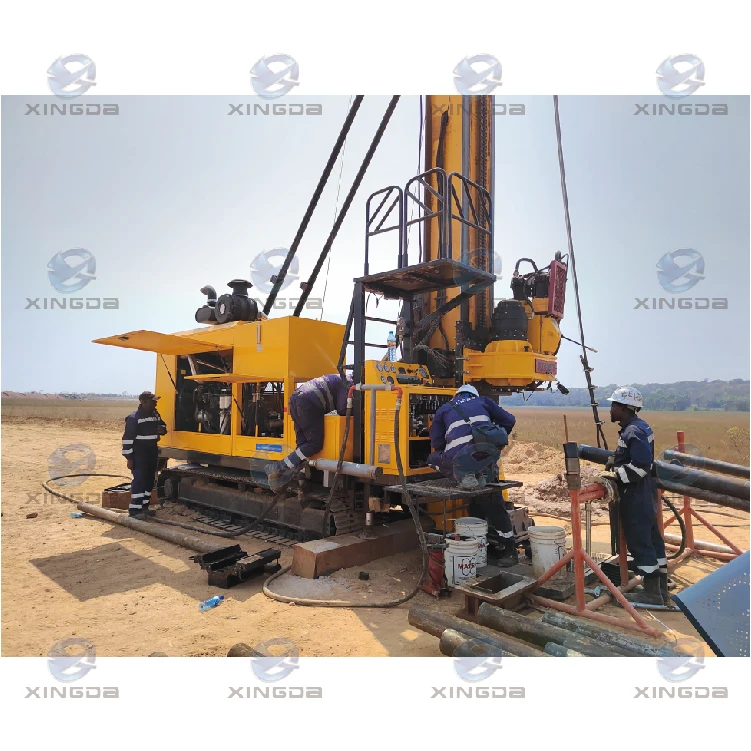

Application Range
XDX-8 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring for wire-line coring and top drive drilling.
