500m Geological Exploration RC Reverse Circulation Mining Sampling Drilling Rigs

Type: Core Drilling Rig
Power Type: Diesel
Place of Origin: Hubei, China
Brand Name: Xingda
Use: core sample
Dimension(L*W*H): 6350*2200*2950
Weight: 9500 KG
Warranty: 1 Year
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Engine, Gearbox
Key Selling Points: Easy to Operate
Drilling Diameter: 130-250mm
Drilling Depth: Max.500m
Product name: RC drilling rig
Application: Geological Drilling
Max Drilling Depth: 220m
Max open hole caliber: 130-250mm
Power: 132kw
Spindle stroke: 3500mm
Lifting Capacity: 65KN
Engine: CUMMINS
Drilling method: Pneumatic Hammer Drilling
MOQ: 1set
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Type: Core Drilling Rig

Power Type: Diesel

Place of Origin: Hubei, China

Brand Name: Xingda

Use: core sample

Dimension(L*W*H): 6350*2200*2950

Weight: 9500 KG

Warranty: 1 Year

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Core Components: Engine, Gearbox

Key Selling Points: Easy to Operate

Drilling Diameter: 130-250mm

Drilling Depth: Max.500m

Product name: RC drilling rig

Application: Geological Drilling

Max Drilling Depth: 220m

Max open hole caliber: 130-250mm

Power: 132kw

Spindle stroke: 3500mm

Lifting Capacity: 65KN

Engine: CUMMINS

Drilling method: Pneumatic Hammer Drilling

MOQ: 1set

Product Description

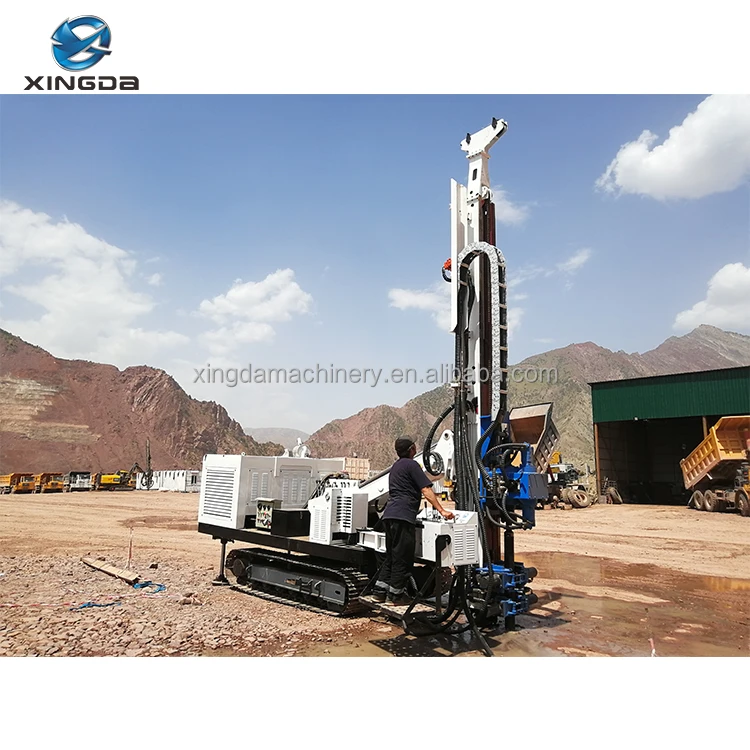

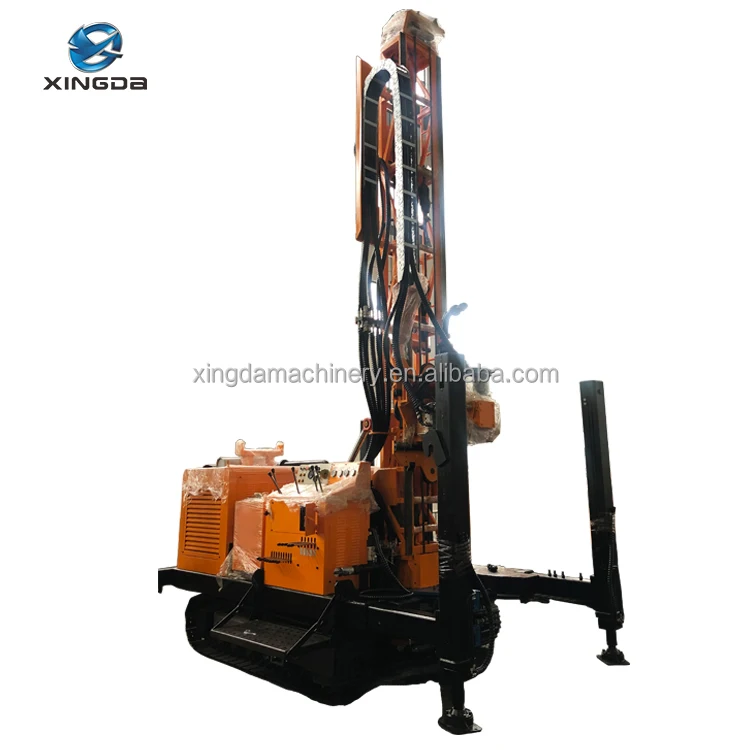

Hot sale hydraulic system drive crawler RC drilling rig DTH hammer machine

Applications：XDL- RC series drilling rig is mounted on a crawler chassis, driven by full hydraulic system, power
head type drilling rig, which is used to drill vertical or inclined hole, and also the drilling
techniques way of the following:
Drill auger drill
Down-The-Hole hammer drill
Mud forward circle drill
ODEX tools(casing pipe following) drill with DTH hammer
Medium reverse circle drill
The drilling rig is able to resolve the difficulty of boring in the soft and loose cover
ground condition, the screes and gravels area and also the fragmentation stratum according to different drilling techniques ways.
Therefore, it is widely used in varieties of the boring work.
The drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole,mini foundation pile hole.

Technical Sepcification:
Model					XDL-180RC	XDL-220RC	XDL-300RC	XDL-500RC
Drill rig weight (crawler mounted)			kg	9500	8000	8500	12000
Length×Width×Height (normal)			mm	6350×2200×2950	6300×2300×2500	6750×2300×3000	7650×2250×3200
Drill Depth			m	180	250	300	500
Drill Diameter			mm	130-250	130-250	130-250	130-300
Drill head output
Output Rotation Speed	low speed	rpm	40/80	40;80; 70;140	55;110	52;104
Output Rotation Speed		high speed	rpm	40;80; 70;140	55;110	52;104	70/140
Max Output Torque			N.m	8500	8500	10000	12000
Stroke of Power Head
Feeding			mm	3500	3800	3500	7000
Thrust Force			kN	45	60	100	100
Lifting Capacity			kN	65	85	150	160
Mast
Sliding Stroke			mm	850	850	/	/
Oil Pump
Output volume (big oil pump)			ml/r	63	63	63	87
Output volume (mini oil pump)			ml/r	25	25	25	25
Output volume (middle oil pump)			ml/r	50	50	63	63
Engine					Cummins	Cummins	Cummins	Cummins
Power			KW	132	132	132	132
Rotary Speed(Max.)			rpm	2200	2200	2200	2200

Company Profile

Hubei Xingda Imp&Exp Trading Co.,Ltd is a professional manufacturer and trader, specialized in the research and development, sales and service of the industry of engineering drilling,geological exploration,jet grouting drilling, water well drilling field. It has formed three main production system including machine manufacture, drilling construction and management service.

Our factory covers more than 23, 000 square meters. Equipped with more than 20 years professional manufacturing experience and professional production team as well as more than 400 excellent skillful workers, more than 50 experienced engineers. The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig), multifunction engineering drilling rig(top drive engineering drill rig), tunnel rotary jet grouting drilling rig and tunnel core drilling rig, jet grouting drilling rig, dth water well drilling rig and grouting pumps and jet grouting drilling tools, like MJS, RJP grouting are our leading production. The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad. The drilling tools are our traditional well-known production for its particular manufacturing technics and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.

We have received the ISO9001-2008 quality management system certification. We also obtain the "Province Level Honoring Contracts& Keeping Promise Enterprise " certification. "Faith, all for customers, providing the first-class production and service " is our eternal target.

Sample Room

Production Process

Exhibition

Certifications

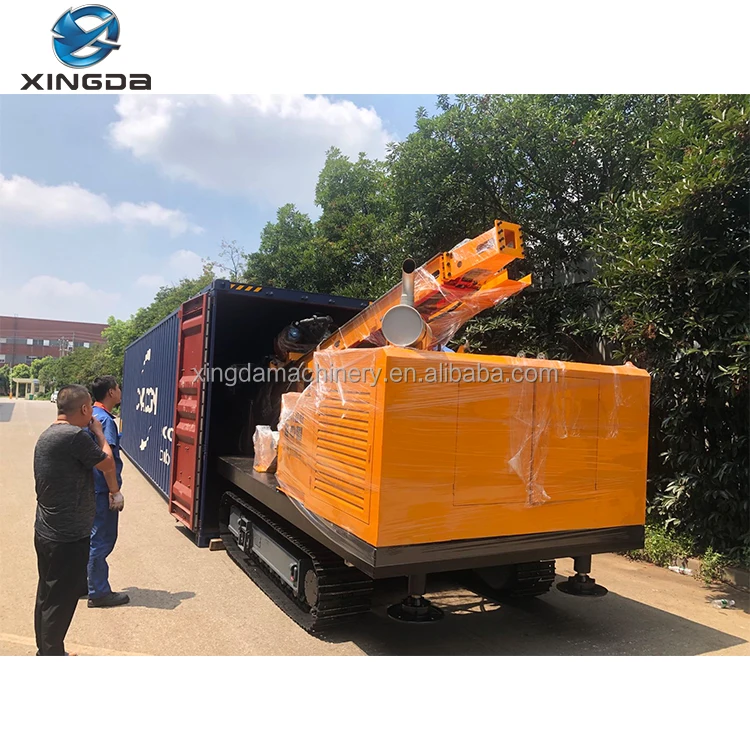

Packing & Delivery

FAQ

1. Are you a manufacturer, trading company or a third party?We are a manufacturer and a trading company , our factory have more than 20 years experiences, our trading company have 6 years experiences.2. What`s your terms of payment?TT, 30-50% in deposit, the balance will be paid before delivery,we will send you photos of the products and packages before you pay the balance.3. what`s your terms of delivery?FOB,CIF,CFR4. What about delivery time ?Generally ,it ill take 7days after receiving your advance payment,the specific delivery time depends on the items and the quantity of your order.5. What is your minimum order quantity?Our minimum quantity for drillng machine is 1 set. 6. Is your price competitive?A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.7.What is the warranty of our machine ?Our main machine enjoys a 1 year warranty, but not include any vulnerable parts on it. We could offer vulnerable parts at any time when you need.8,Could you stick customers brand on the products?We warmly welcome the OEM orders.
