Description
Type: Core Drilling Rig
Power Type: Electric
Place of Origin: Hubei, China
Brand Name: xingda
Use: Ore
Voltage: 380v
Dimension(L*W*H): 4000*1040*1840mm
Weight: 2900 KG
Warranty: 1 Year
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Pump, Engine
Key Selling Points: Easy to Operate
Drilling Diameter: BQ, NQ, HQ, PQ
Drilling Depth: 400M
Mobility: Portable
Product name: underground core drilling rig
Drilling depth: 350.480.600m
Drilling angle: 0°~180°
MOQ: 1set
After Warranty Service: Online support
Drilling method: Mud Drilling
Function: Electric Deep Core Drilling Rig
Feature: Geological Coring Machine
Advantage: Reliable Hydraulic System
Product Description

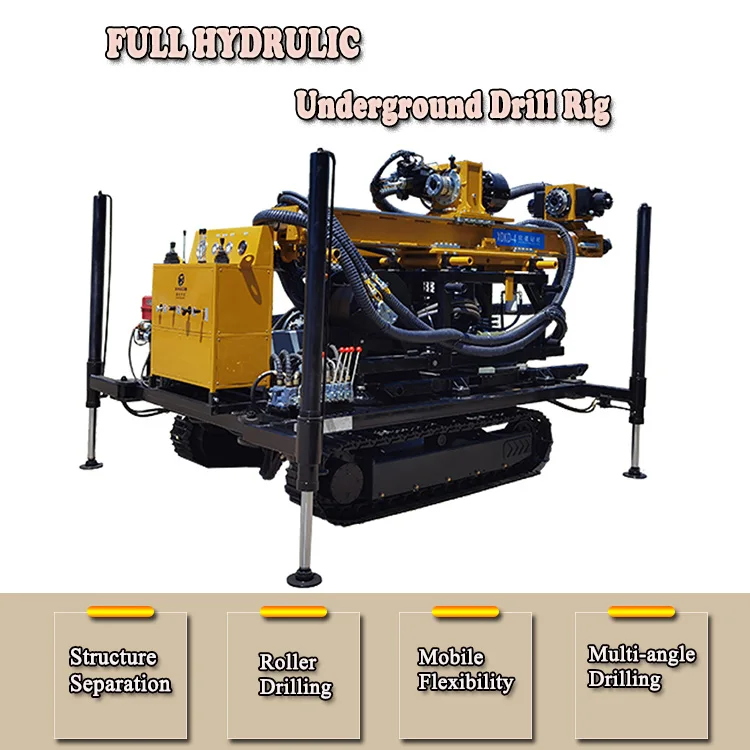

XDKD-4 Full Hydraulic Underground Drill RigI. General IntroductionXDKD-4 full hydraulic underground top drive drill rig is mainly applied in the fields of coal, geology, metallurgy and engineering. It is used for drilling large dia. gas suction hole in mines, gallery as well as coal mine, water injection hole, and big dia. horizontal hole. It can meet the big dia. roller drilling, hard tungsten-carbide drilling and percussive-rotary drilling.
Ⅱ. Main Features:1. It is separate in structure, small in size, light in weight, flexible in movement and convenient in operation.

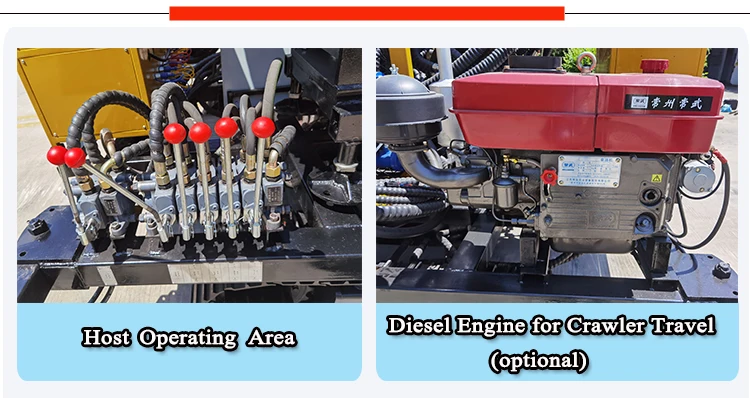

2. The hydraulic pump is driven by explosion-proof electric motor through operating system, then the hydraulic pump enforces hydraulic motor to make drill head rotate, and at the same time, the movement of drill head is realized by oil cylinder & chain double speed mechanism.

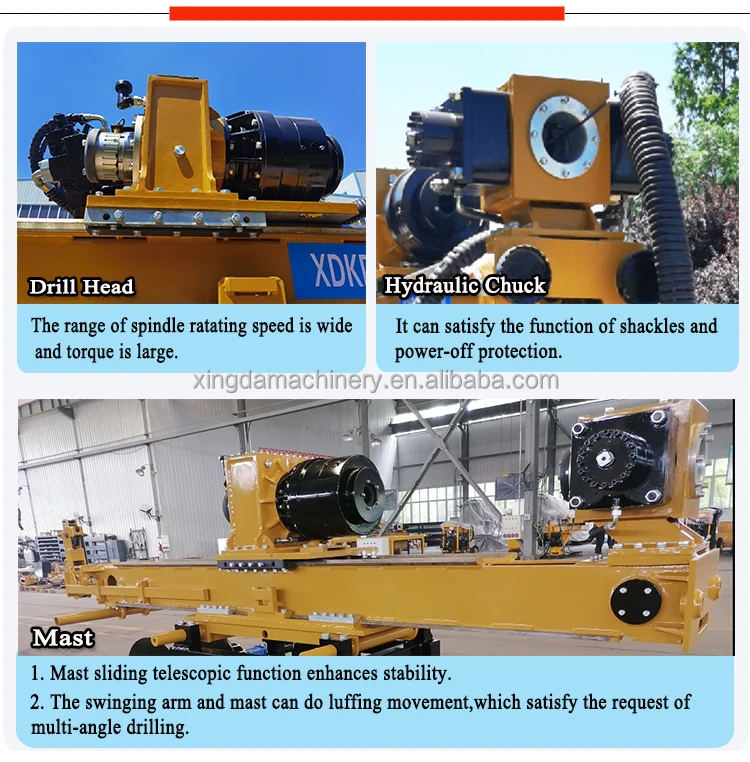

3. Hydraulic chuck can satisfy the function of shackles and power-off protection.
4. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.
5. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.
6. The range of spindle rotating speed is wide and the torque is large.
ITEM | UNIT | XDKD-4 | ||
Drilling Depth (m) | BQ | 600 | ||
NQ | 480 | |||
HQ | 350 | |||
Drill Head Rated Rotary Torque | Nm | 1000 | ||
Rotary Speed | r/min | 0~1200 | ||
Lifting Force/Feeding Force (Chain) | KN | 100/50 | ||
Lifting Force/Feeding Force (Cylinder Driving Directly) | KN | 90/90 | ||
Rated Power of Electromotor | KW | 55 | ||
Rated Rotary Speed of Electromotor | r/min | 1480 | ||
Drill Head Feeding Stroke | mm | 1800 | ||
System Pressure | MPa | 28 | ||
Single-wire Hoisting Capacity of Wire-line Winch | KN | 12 | ||
Rope Dia. of Wire-line Winch | mm | 6 | ||
Drilling Angle | ° | 0-180 | ||
Weight(kg) | Main Machine | 2200 | ||
Power Unit | 1100 | |||
Control Cabinet | 130 | |||
Dimensions | Main Machine | mm | 4220*1020*1920 | |
Power Unit | mm | 2125*1140*1290 | ||
Control Cabinet | mm | 960*550*1050 | ||
