200m Truck Mounted Hydraulic Rotary Drill Water Well Drilling Rig with Factory Price

Type: Rotary Drilling Rig
Place of Origin: Hubei, China
Brand Name: xingda
Use: Water Well
Dimension(L*W*H): 10500*2500*3400mm
Weight: 21000 KG
Warranty: 1 Year
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Pump, Engine, Gearbox
Key Selling Points: Flexible Manufacturing
Drilling Diameter: 140-300mm
Drilling Depth: Max.200m
Mobility: Truck mounted
Name: 200m Truck Mounted Water Well Drilling Rig
Drill depth: 200m
Drill diameter: 140-203mm
Working pressure: 1.7-3.0(Mpa)
Air consumption: 17-30(m³/min)
Lifting force(T): 15T
Construction site: Surface drilling rig
Spare parts supply: Anytime
Price: Negotation
MOQ: 1set
Applicable Industries: Construction works , Energy & Mining, Other, Advertising Company
Showroom Location: None
Condition: New
Marketing Type: New Product 2020
Warranty of core components: 6 Months
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Type: Rotary Drilling Rig

Place of Origin: Hubei, China

Brand Name: xingda

Use: Water Well

Dimension(L*W*H): 10500*2500*3400mm

Weight: 21000 KG

Warranty: 1 Year

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Core Components: Pump, Engine, Gearbox

Key Selling Points: Flexible Manufacturing

Drilling Diameter: 140-300mm

Drilling Depth: Max.200m

Mobility: Truck mounted

Name: 200m Truck Mounted Water Well Drilling Rig

Drill depth: 200m

Drill diameter: 140-203mm

Working pressure: 1.7-3.0(Mpa)

Air consumption: 17-30(m³/min)

Lifting force(T): 15T

Construction site: Surface drilling rig

Spare parts supply: Anytime

Price: Negotation

MOQ: 1set

Applicable Industries: Construction works , Energy & Mining, Other, Advertising Company

Showroom Location: None

Condition: New

Marketing Type: New Product 2020

Warranty of core components: 6 Months

Product Description

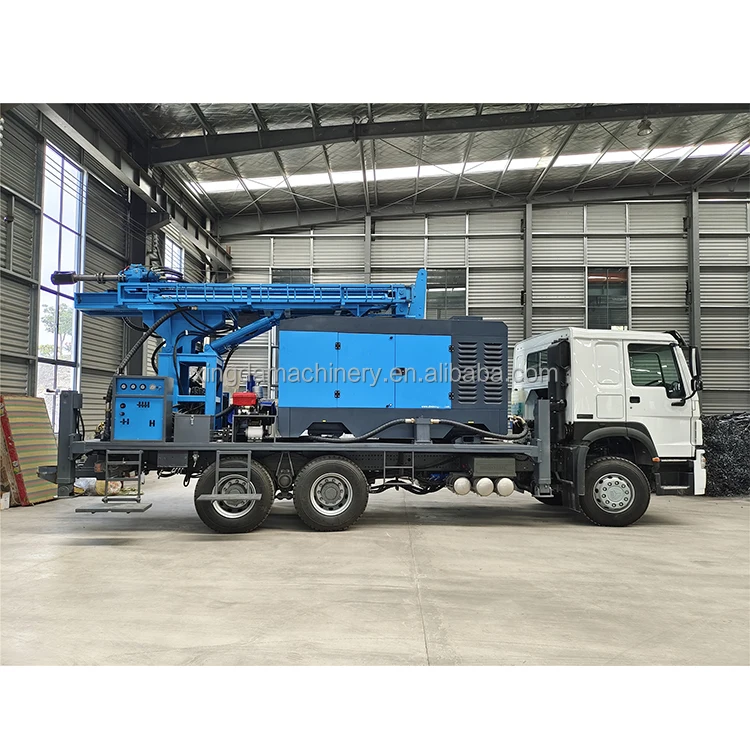

200m Truck Mounted Hydraulic Rotary drill Water Well Drilling Rig Price

ApplicationFYC series truck mounted multifunctional hydraulic well drilling rig series mainly applied to industrial and civil drilling and
geotemperature drilling. It has the advantages of large diameter of drilling hole, deep drilling, fast footage, and high
efficiency.Main features1) Truck: adopt brand-new trucks of well-known domestic brands, it can not only ensure that you can drive long distances, but also provide stable and sufficient power for drilling.
2) Hydraulic oil pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.
3) Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs
4) Lifting force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity
5) The lift arm is installed with a limiter to protect cylinder and ensure the safety of work
6) Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.

Model	FYC200	FYC280	FYC350	FYC450
Hole diameter (mm)	140-203	140-305	140-350	140-350
Hole depth(m)	200	280	350	450
Diesel engine	191kw(Cummins)	191kw(Cummins)	210kw(Cummins)	210kw(Cummins)
One propulsion stroke(mm)	3300	6600	6600	6600
Working pressure(Mpa)	1.7-3.0	1.7-3.0	1.7-3.3	1.7-3.5
Air consumption(m3/min)	17-30	17-31	17-35	17-36
Drill pipe diameter (mm)	76 89	76 89	89 102	102
Lifting force(T)	15	17	24	25
Rotate speed(rpm)	40-70	40-70	55-115	50-135
Rotate torque(N.m)	4300-5500	4500-6000	6200-8500	7000-9500
Traveling speed(km/h)	80	80	80	80
Dimensions(mm)	1050025003400	1050025003400	1100025003400	1100025003400
