Wheel Type Borehole Drilling Rig Core Drilling Rig Geological Exploration Drill Machine

+86-18986596914

sales@xingdamachinery.com

❤ Add to collection
Wheel Type Borehole Drilling Rig Core Drilling Rig Geological Exploration Drill Machine

Type: Core Drilling Rig
Power Type: Diesel
Place of Origin: Hubei, China
Brand Name: Xingda
Use: Ore and water well
Dimension(L*W*H): 1180*680*1600mm
Weight: 200 KG
Warranty: 6 Months
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Pump, Engine
Key Selling Points: Competitive Price
Drilling Diameter: 75~108mm
Drilling Depth: 50m
Product name: portable core drilling rig
Drilling depth: 10-50m
Max open hole caliber: 150mm
End hole caliber: 75mm
Drill rod caliber: 42mm
Drilling angle: 90°~75°
Power: Diesel engine 5.7kw
spindle speed: 50-130r/min
Spindle stroke: 1100mm/600mm
MOQ: 1set
Applicable Industries: Farms, Construction works , Energy & Mining
Showroom Location: Philippines
Condition: New
Marketing Type: Hot Product 2022
Warranty of core components: 1 Year
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Type: Core Drilling Rig

Power Type: Diesel

Place of Origin: Hubei, China

Brand Name: Xingda

Use: Ore and water well

Dimension(L*W*H): 1180*680*1600mm

Weight: 200 KG

Warranty: 6 Months

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Core Components: Pump, Engine

Key Selling Points: Competitive Price

Drilling Diameter: 75~108mm

Drilling Depth: 50m

Product name: portable core drilling rig

Drilling depth: 10-50m

Max open hole caliber: 150mm

End hole caliber: 75mm

Drill rod caliber: 42mm

Drilling angle: 90°~75°

Power: Diesel engine 5.7kw

spindle speed: 50-130r/min

Spindle stroke: 1100mm/600mm

MOQ: 1set

Applicable Industries: Farms, Construction works , Energy & Mining

Showroom Location: Philippines

Condition: New

Marketing Type: Hot Product 2022

Warranty of core components: 1 Year

If you want to know more ,pls send us inquiry and we will give you best ideas

Product Description

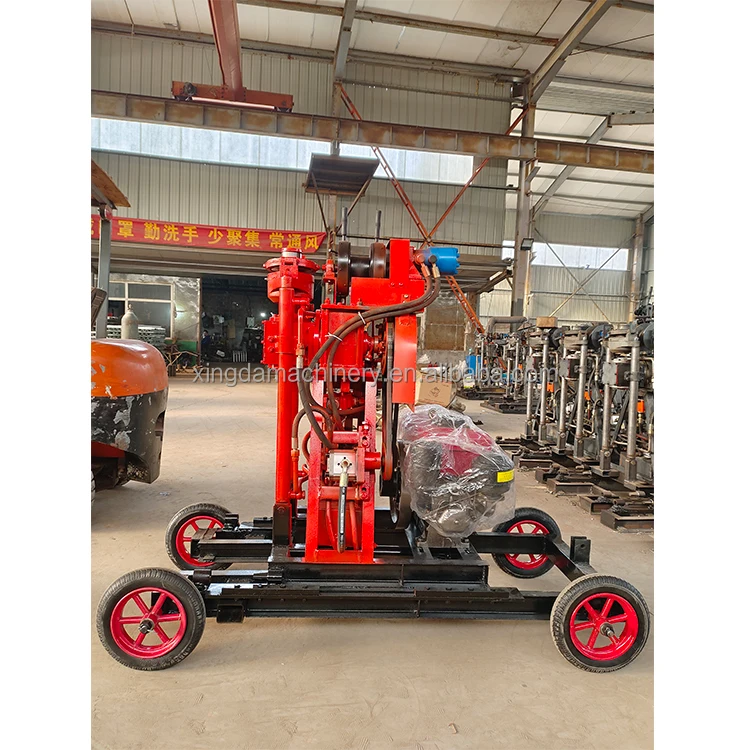

Wheel Small Portable Rotary Mine Core Drilli Rig Water Well Machine

General Introduction

XINGDA XY-50/50Y portable hydraulic core drilling rig is a small sampling drilling equipment widely used in plains/mountains/and areas with inconvenient transportation and energy. It has the advantages of compact structure, small footprint, light weight and convenient movement.
Suitable for railway, water conservancy and other construction projects and geological sampling surveys in outdoor mountainous areas, geological core drilling rigs, small grouting hole blasting holes, etc.Drilling rig use and scope of application
1. Engineering geological survey of structures such as railways, hydropower, transportation, bridges, and dam foundations.
2. Geological core drilling and physical surveys.
3. Drilling of small grout holes and blast holes.
4. Drilling of small water wells.

Technical parameters

Model	XY-50	XY-50Y
Hole depth	50m	50m
Hole diameter	75-108mm	75-108mm
Weight (not include the engine)	200kg	260kg
Dimension	11806801600mm	14006801230mm
Rod size	42*550mm	42mm
Spindle speed	70-650(1-3gear)	70-650(1-3gear)
Reverse speed	50-130(R gear)	50-130(R gear)
Matching engine	R180 model engine (5.7KW)	R180 model engine (5.7KW)
Cylinder stroke	1.1m	600
Drill mobile distance	-----	200
Winch lifting	-----	500kg

If you want to know more ,pls send us inquiry and we will give you best ideas

FAQ

1. Are you a manufacturer, trading company or a third party?We are a manufacturer and a trading company , our factory have more than 20 years experiences, our trading company have 6 years experiences.2. What`s your terms of payment?TT, 30-50% in deposit, the balance will be paid before delivery,we will send you photos of the products and packages before you pay the balance.3. what`s your terms of delivery?FOB,CIF,CFR4. What about delivery time ?Generally ,it ill take 7days after receiving your advance payment,the specific delivery time depends on the items and the quantity of your order.5. What is your minimum order quantity?Our minimum quantity for drillng machine is 1 set. 6. Is your price competitive?A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.7.What is the warranty of our machine ?Our main machine enjoys a 1 year warranty, but not include any vulnerable parts on it. We could offer vulnerable parts at any time when you need.8,Could you stick customers brand on the products?We warmly welcome the OEM orders.
